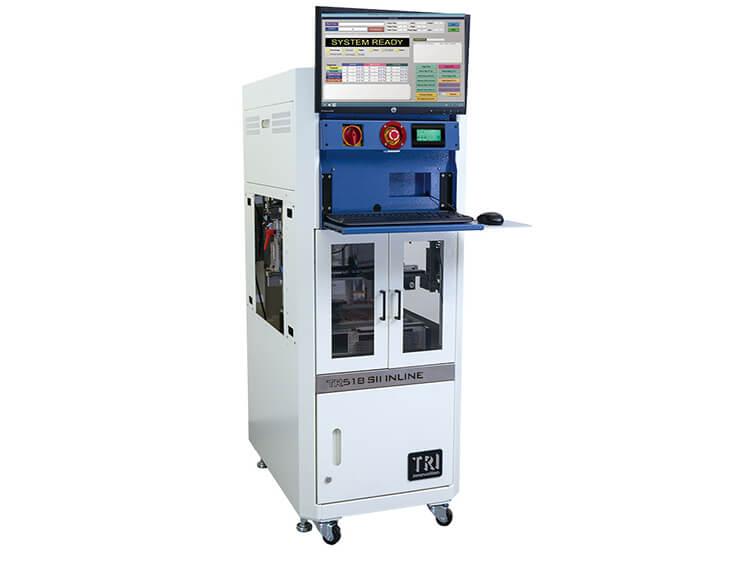

In-Circuit Tester TRI ICT TR518 SII INLINE

max PCB: 330x250mm
Weight: 340KG
Dimension: 600 x 900 x 1595 mm
Product description: In-Circuit Tester TRI ICT TR518 SII INLINE, max PCB: 330x250mm, Weight: 340KG, Dimension: 600 x 900 x 1595 mm
INQUIRY

In-Circuit Tester TRI ICT TR518 SII INLINE

Product Specification

TR518 SII INLINE is a cost effective, flexible automated testing platform designed for MDA testing on medium-sized boards with up to 1024 testing points. The fully electrical SMEMA-compatible platform features a minimal footprint and full TR518 SII MDA capability.

• Full featured inline testing platform
• Designed for TRI MDA testers
• Minimal footprint with SMEMA integration
• Fully electrical design without compressed air
• Up to 1024 MDA analog testing points

Tester Specifications
Analog Test Points	1024 analog test points
Operating System	Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion
Analog Testing
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	Component R/L/C measurement
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Programmable High Voltage DC Source up to 100V / 100 mA
Yield Management System	YMS 4.0
Board Handling
Min. PCB Size	70 x 70 mm
Max. PCB Size	330 x 250 mm
PCB Thickness	0.6 ~ 5 mm
Dimensions
WxDxH	600 x 900 x 1595 mm
WxDxH	Note: not including signal tower, height: 515 mm
Weight	340 kg
