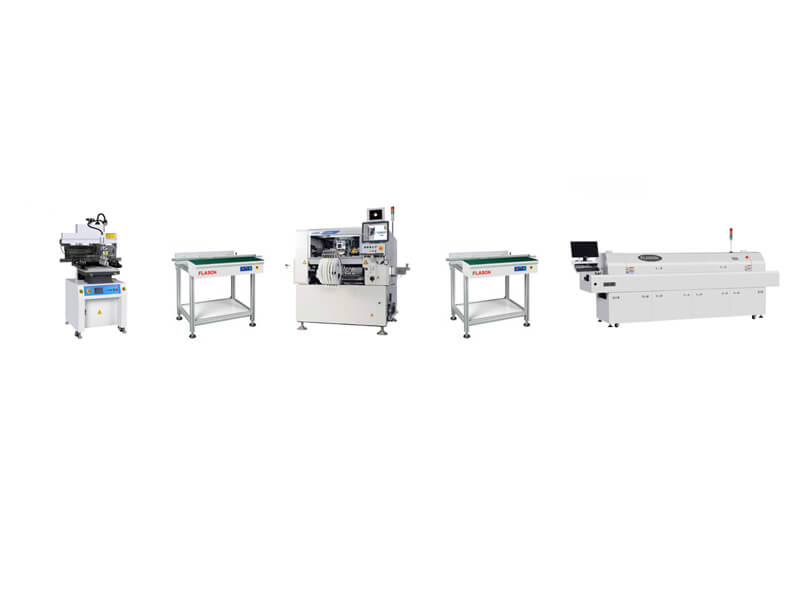

Semi Auto LED Production Line
Semi Auto LED Production Line, Suitable for LED PCB production, Low cost solutions, High accuracy and stable. Juki Brand pick and place machine.
1. Semi Auto solder paste printer
Using linear guide-ways,matching motor drive speed,ensure the printing stability and precision.
Blade pressure and printing speed is adjustable,precision pressure gauge,speed controller display.
Suspension blade system makes printing more evenly.
Modular universal bench, thimble random placement,easy conversion.
With alignment device for PCB board and frame.
Work with both single-sided and double-sided PCB boards.
Steel frame arms can be adjusted for different size ranges from 370 * 470mm to 1500 * 350mm .
Auto printing , stable and efficient printing quality.
2. LED Chip mounter JUKI JX350 LED
<p font-size:14px;background-color:#ffffff;"="" style="box-sizing: border-box;margin-top: 0px;margin-bottom: 10px;font-family: opensans, Arial, Helvetica, sans-serif;font-size: 14px;white-space: normal;background-color: rgb(255, 255, 255);color: rgb(34, 34, 34)">JX-350 LED Flexible LED Mounter
The new JX-350 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.
It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.
Ultra-Long Board Support
3. 8 Heating zones Reflow Oven A8
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.
2. Using special high temperature barrier structure for heat preservation and special iron in Heating passage.
3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.
4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.
No.2 Smooth and reliable transmission system
1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.
2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.
3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.
No.3 Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.
2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.
3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .
4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.
5. Failure diagnosis, visual & audio alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.
PCB Assembly line, LED Production line,Automatic SMT Assembly line,Sime Automatic SMT Assembly line,JUKI Assembly Line,Samsuang Assembly Line,Hanwha Assembly Line,Panaconic Assemly Line,FUJI Assembly Line,YamahaAssembly Line.
|FLASON provide a full SMT assembly line solutions, including
SMT Reflow Oven Manufacturer,
Wave Soldering Machine,
Pick and Place Machine,
SMT Stencil Printer,
SMT Inspection Machine,
SMT Reflow Oven,
SMT Peripheral Equipment,
SMT Assembly line,
SMT Spare Parts
etc any kind SMT machines you may need, please contact us for more information:
wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: firstname.lastname@example.org
