Samsung SMT Assembly line

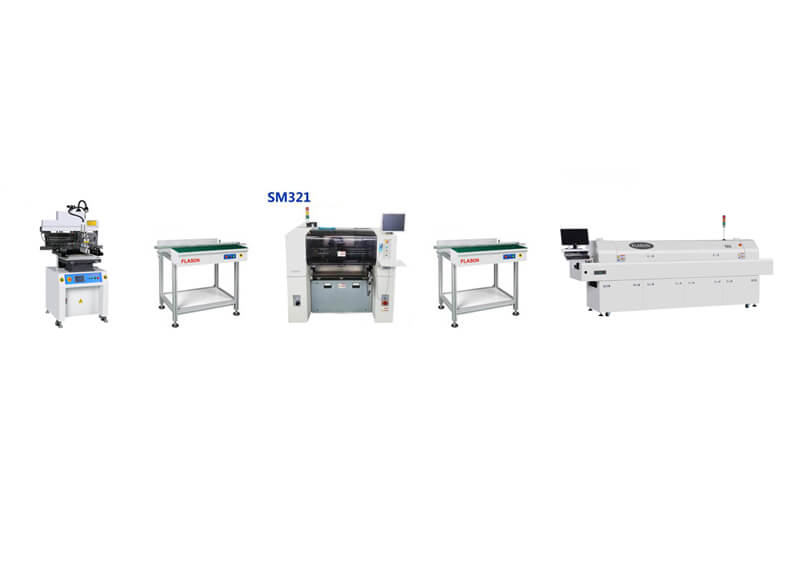

Samsung SMT Assembly line, Samsung SM321 speed is 21000CPH, Suitable for LED light, LED strip, Consumer products like mouse, Keyboard and other home electronic proudcts production. Whole production line cost around 20000USD, Suitable for start up SMT LED PCB assembly business. Contact us and we will offer you a suitable semi auto SMT assembly line solutions for start up SMT factory.
Specifications of each Machine:

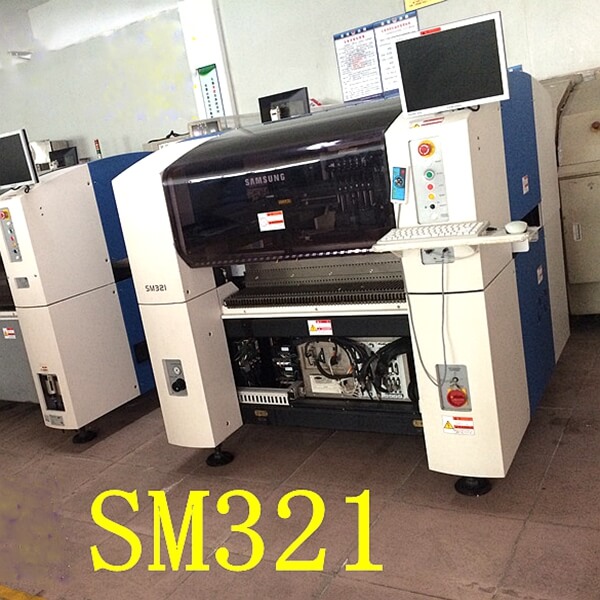

1.Samsung SM321 Chip Mounter
As a ten years old pick and place machine, Samsung SM321 still working fine with good quality, very nice price and it is suitable for start up low cost SMT solutions..
Chip theoretical speed of 21,000CPHSamsung SMT SM321S using Windows XP operating system, the best production speed of 52,000 CPH, Dual-arm Y-axis dual-servo drive system, arms a total of 16 placement head, high-speed flight image recognition system,Components to adapt to: 0402mm Chip to12mm, placement accuracy: ± 50μm, non-stop refueling, For the new SM feeding system, LED display feeder status, dual transmission system, can be put 84 8mm feeders, With front and back for the operation of the LCD display, automatic mouth change device.
Mounting range 0402mm Chip to 55mm
Placement accuracy plus or minus 0.03mm
PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Equipment size L1,650 * D1,680 * H1,530
Equipment weight 1800kg
Maximum height H 15mm (fixed vision)
Narrow Pitch Mounting 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of feeders Max.120EA
PCB size (mm)
(L * W * T) Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions L1,650 * D1,680 * H1,530
Weight (KG) 1,800kg
Energy consumption 3phase
AC200 / 208/220/240/380/415
4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption 5KG / cm2 260NI / min

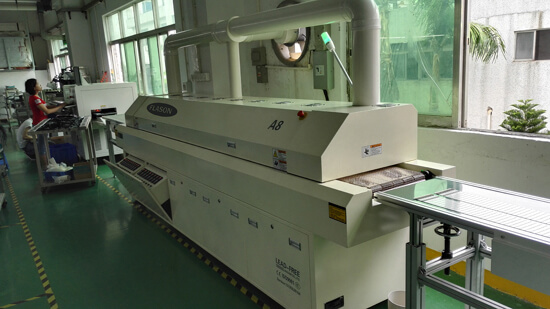

2.8 zones Reflow oven
it's enough for LED production, if you need double side PCB production use a Chain conveyor is OK. and second hand price is quite good and it's suitable for start up low cost SMT solutions..

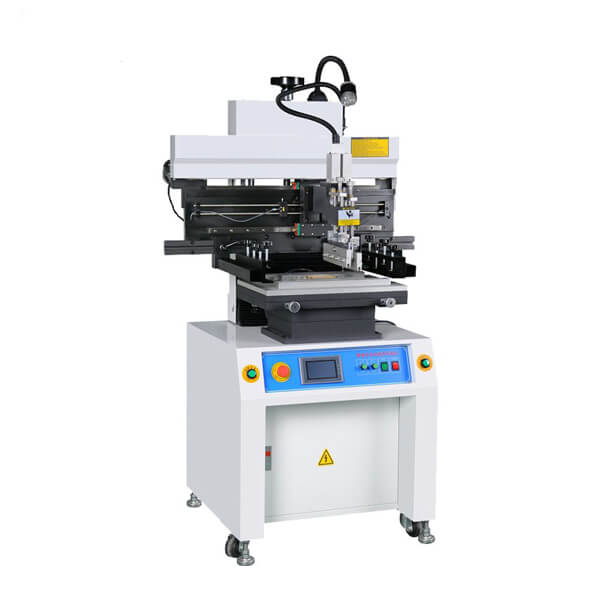

3.Semi Automatic SMT stencil printer
Number of heating zones
Top 8/Bottom 8
Top: hot air; bottom: IR
Max. Width of PCB
Mesh belt width
Front track fixed(option: rear track fixed)
5 line 3 phase 380V 50/60Hz
Ramp Up time
About 20 mins
Temp. set-point range
Temp. control method
PID close loop control & SSR driving
Temp. control precision
Temp. deviation on PCB
Process Data and status storage(80GB)(machine with PC)
Aluminum Alloy Plate
Abnormal temp. (Overtemp/low temp.)
Board dropped alarm
Tower light: Amber-warning, Green-normal, Red-abnormal
it's good for small and middle size PCB printing, Even long LED strip PCB also can use this semi auto smt printer to do printing, new machine is not expensive, around 3000USD, second hand is more cheap is suitable for start up low cost SMT solutions.
Main Features of SMT Stencil Printer Machine
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch- screen life.
10.Printing speed display, can be adjusted.
|Specifications||SMT Stencil Printer Machine|
|Voltage||Single phase 220V,50/60Hz,100W|
PCB Assembly line, LED Production line,Automatic SMT Assembly line,Sime Automatic SMT Assembly line,JUKI Assembly Line,Samsuang Assembly Line,Hanwha Assembly Line,Panaconic Assemly Line,FUJI Assembly Line,YamahaAssembly Line.
|FLASON provide a full SMT assembly line solutions, including
SMT Reflow Oven Manufacturer,
Wave Soldering Machine,
Pick and Place Machine,
SMT Stencil Printer,
SMT Inspection Machine,
SMT Reflow Oven,
SMT Peripheral Equipment,
SMT Assembly line,
SMT Spare Parts
etc any kind SMT machines you may need, please contact us for more information:
wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: firstname.lastname@example.org
