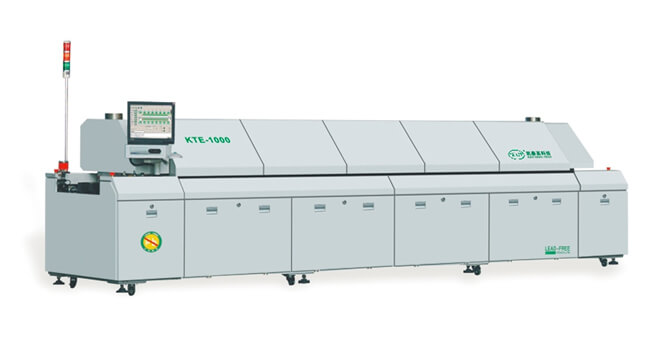

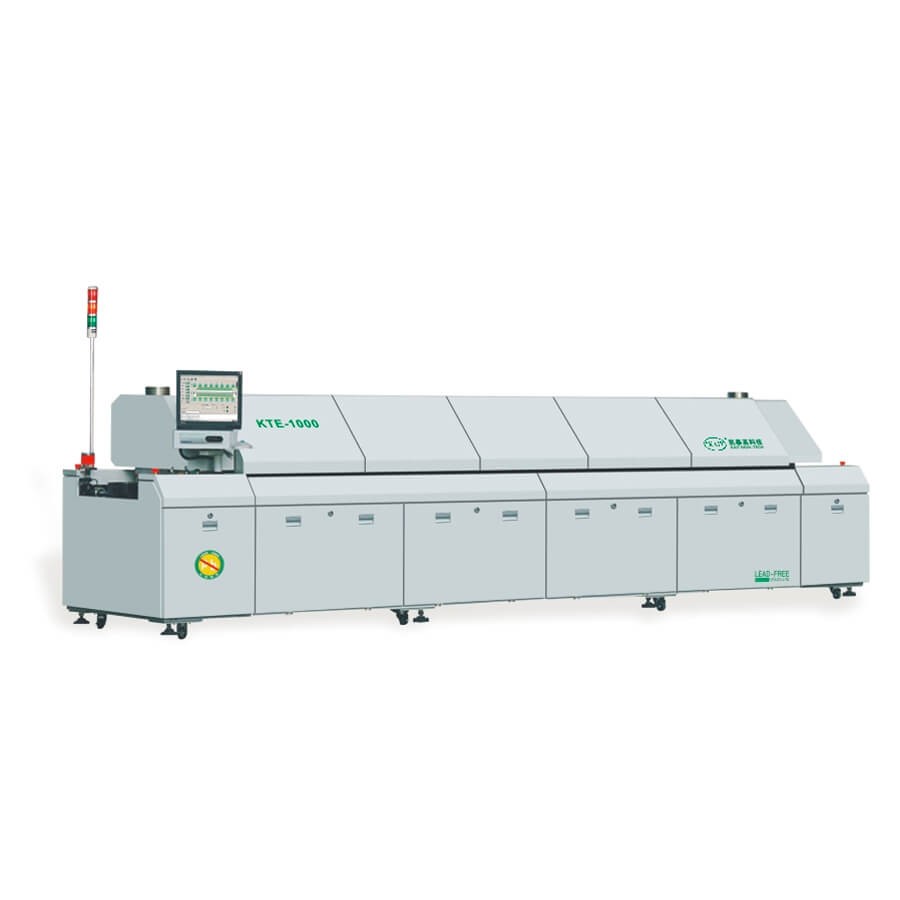

SMT Reflow Oven KTE-1000

Heating:10 heating zones
Cooling zones: top 2
Weigth: APPROX 2615KG
Dimension: 6135*1360*1490mm

SMT Reflow Oven KTE-1000

Specifications:


SMT Reflow Oven KTE-1000

Features:
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

Model

KTE-1000

Control

Industrial computer

Heating zones quan.

Top 10,bottom 10

Cooling zones quan.

Top 2

Heating zone length

3892mm

Current plate structure

Galvanized plate

Weigth

APPROX:2615KG

Dimension

6135*1360*1490mm

Exhaust capacity

10/min×2

Color

Grey

Control system

Electricity supply

3P  380V/220V 50/60HZ

Temp. control range

Room temp.300℃

Total power

80KW

Temp. control accuracy

±1℃statical state

Start power

36KW

Temp. control method

PID +SSR drive

Consumption power

12KW

PCB temperature deviation

±1.5℃

Speed control

Inverter adjust

Data save

All profiles can be saved

Warm up time

Apprx.30minute

Abnormal alarm

High, low temp. alarm

Conveying system

Rail structure

2 Sectional structure

Rail fixed method

Front fix

Chainstructure

Stuck-free type

Conveying height

900±20mm

PCB Max. width

50-400mm

Conveying method

Mesh+ chain

Component height

Top/bottom 25mm

Conveying speed

300-1500mm

Conveying direction

Left to right

Lubrication

Automatically or manually

Cooling system

Cooling method

Forced air cooling

Heating features

Heating zones

Top 10,bottom 103892mmcan meet the need of the peak lead-free technique.

Cooling zones

After cool down by air, PCB temp. is ≤70℃ at the exit.

Warm up time

From the normal temp. to set temp, approximate 30 minutes.

Warm up sequence

Warm up from two side, save the power and time

Profile transfer time

15min

Heating zone temp. control accuracy

±1℃

PCB temp. deviation

±1.5℃

Empty→ full load heat balance respond time

≤20 s
