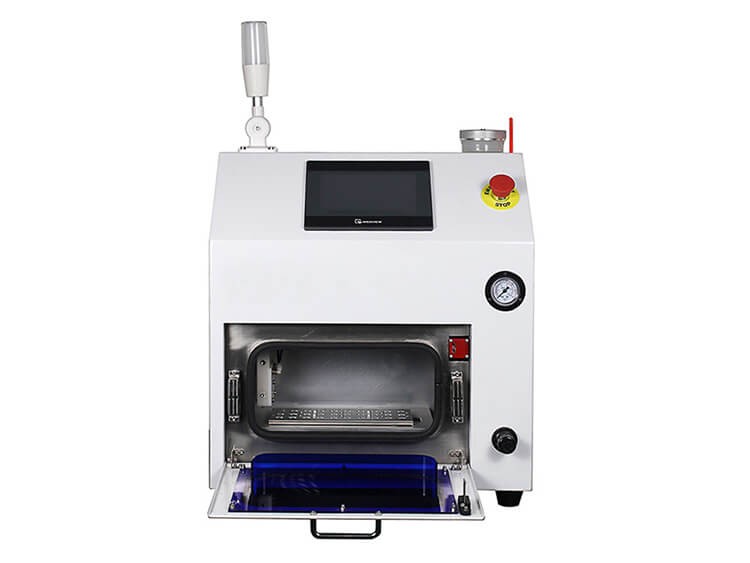

SMT NOZZLE Cleaner NC300

Size: (L*W*H) 500mm × 400mm× 550mm
Power supply 250W
Air source pressure 0.5 - 0.6MPa
Weight Approx. 40 KG

SMT NOZZLE Cleaner NC300

Specifications:

SMT NOZZLE Cleaner NC300

Can cleaning nozzle of JUKI, YAMAHA, SAMSUNG, FUJI, PANASONIC,SEIMENS, HITACHI pick and place machine nozzles.

Description:

Main technical parameters

Size: (L*W*H) 500mm × 400mm× 550mm

Power(three phase two wire ) 2P2W,220VAC ,50/60Hz, 20A

Power supply 250W

Air source pressure 0.5 - 0.6MPa (Normal operation time)

Weight Approx. 40 KG

Parameters for electrical control:

Total power 200W

Controlling mode Touch screen+PLC

Air source Pure compressed air

Jet pressure ≤ 0.4 MPa

Air wastage Under 280NL/min

Liquid type Industrial purified water

Liquid consumption 300cc/hour

Liquid storage capacity 800cc

Admission pipe/Drainpipe ¢8 / ¢6

Specification of nozzle tray Default30 nozzles

Specification of cleaning nozzle 0201 - 2512 (inch)

Noise 35-60 dB
