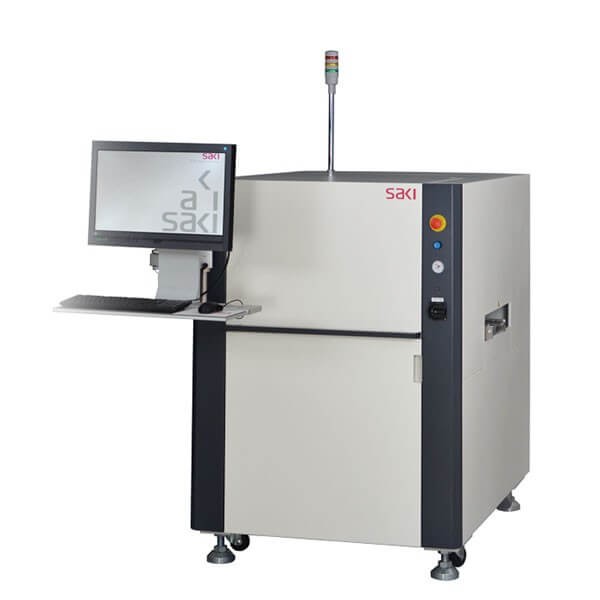

SAKI Inline 3D AOI BF-3Di

3D AOI
Board size:250×330mm
Dimension:​850 × 1295 × 1130mm
weight:900KG

SAKI Inline 3D AOI BF-3Di

Specifications:

SAKI Inline 3D AOI BF-3Di

3D height data to be by directly reading sample and components height to analyze assembly conditions

Effective to detect failures with microchips with small pads and parts having bottom electrodes

Height measurement range is up to 20mm by active projection technology

Sample surface can be measured from every 4 directions

without dead angle

BF-3Di In-line 3D AOI

3D height data to be by directly reading sample and components height to analyze assembly conditions

Effective to detect failures with microchips with small pads and parts having bottom electrodes

Height measurement range is up to 20mm by active projection technology

Sample surface can be measured from every 4 directions

without dead angle

Inspection data can be generated easily from CAD data in the same way as our 2D-AOI machines.

As measurement is performed in a large area, sample surface can be automatically detected and height zero reference points will be set automatically for each block area. By doing so, inspection library data can be easily added onto necessary locations without having effect by adjacent components. In case of Active project technology, measurement is performed based on each FOV (Field of View). By employing high rigidity gantry, measurement data for FOV can be automatically combined into one continuous image data for accurate position precision.

Also, these 3D machines use the same multiple lighting in the same way as our 2D-AOI machines and a variety of algorithms can be used based on the 2D-AOI experience. Saki’s new BF2 software allows a user to create inspection logic flexibly by combining 3D and 2D on top of existing Saki standard inspection logic to deal with new components and new failures in lines. Saki’s latest hardware realizes a further optimization of tact time by employing high speed gantry and GPU high speed calculation for high speed scanning system.
