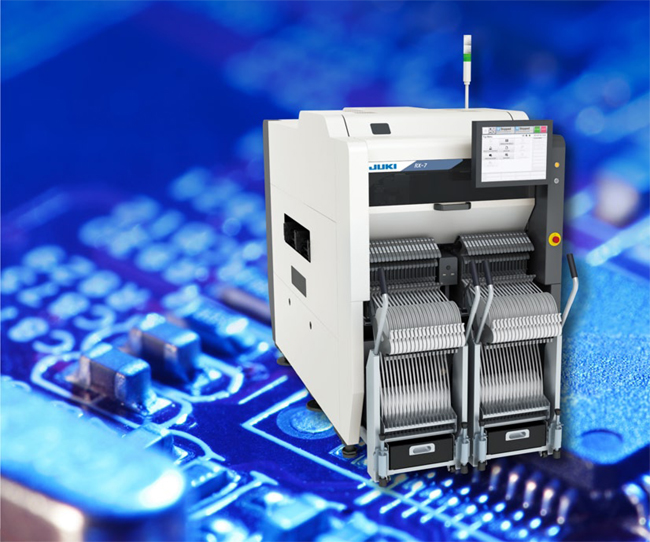

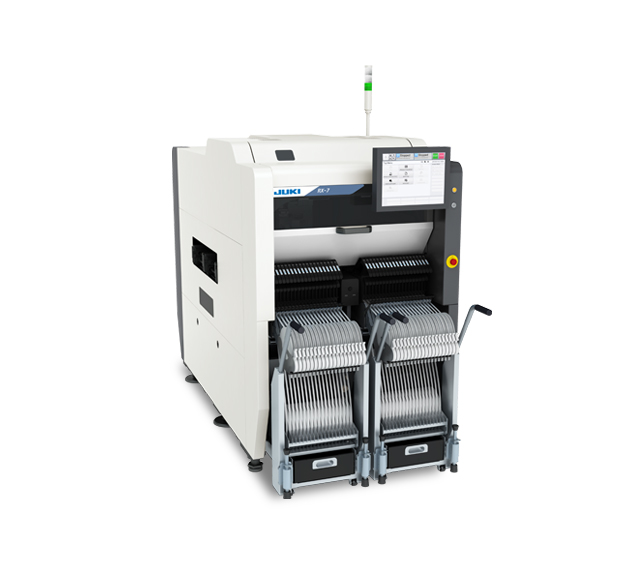

JUKI RX-7 Pick and Place Machine

Applicable Components: 0402 (01005) ~ 5mm
Board size:50 X 50 ~ 360 X 450mm
Feeder inputs:max 76
placement capacity:75,000CPH

JUKI RX-7 Pick and Place Machine

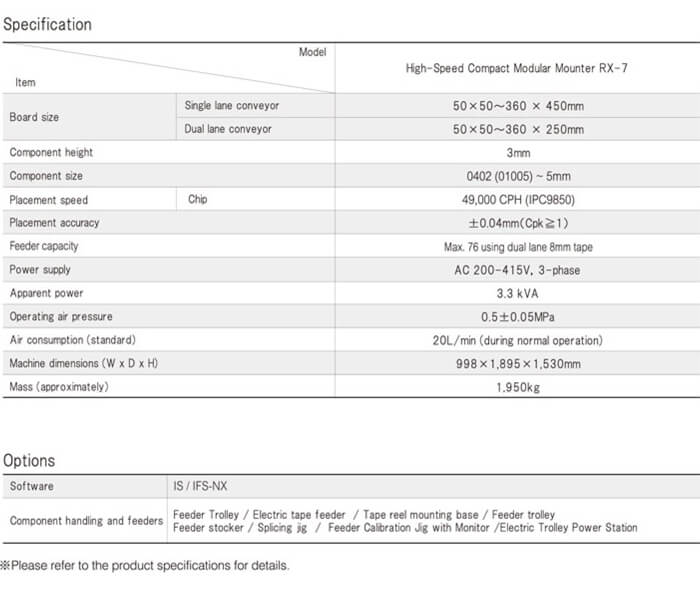

Specifications:

JUKI RX-7 Pick and Place Machine

Placement speed ( Optimum) Chip : 75,000CPH*1

Component size : 03015*2~25mm x 25mm

P16 nozzle head that realizes high-speed high-density placement of very small components

P8 nozzle head that realizes high-speed and high-accuracy placement of middle and small general-purpose components

Space-saving design with a width of 998 mm

This is applicable to the dual lane production.

An optimum production line can be configured for each production item through a combination of heads.

High productivity based on an original planet head and a structure of parallel two heads

This is applicable to small-size IC components ranging from 03015 chip*2 to 25 mm square to be placed.

*1 When using P16 nozzle head. *2 Please contact to us for detail.

High-Speed Compact modular mounter RX-7



P16×P16
nozzle head

P16×P8
nozzle head

P8×P8
nozzle head

Board size

Single lane conveyer

50×50510mm*1 x 450mm


Dual lane conveyer

50×50510mm*1 x 250mm

Component height

3mm

3mm,P16 nozzle head

10.5mm

10.5mm,P8 nozzle head

Component size

03015*25mm x 5mm

03015*25mm x 5mm
P16 nozzle head

0603
25mm x 25mm

060325mm x 25mm
P8 nozzle head

Placement speed (Optimum) chip

CHIP

75,000CPH

54,900 CPH

34,800 CPH

IC

-

6,400 CPH*3

12,800 CPH

Placement accuracy

CHIP

±0.04mm(Cpk≧1)

IC

-

±0.04mm

Component loading quantity

38 (76 in case of 8mm tape) *4
