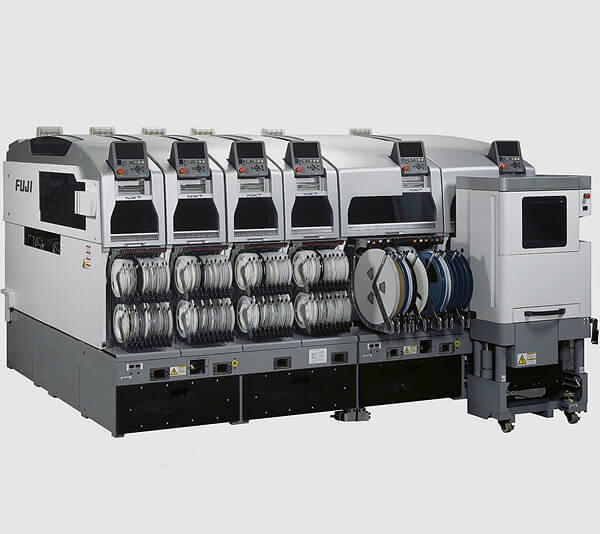

Fuji NXT-1 Pick and Place Machine

Speed: 22500CPH
Patch range: H12S: 0402 ~ 7.5x7.5mm
Machine weight: 1,350kg
Dimensions: 2M II Base: 740 (L) x 1934 (W)
Product description: Fuji NXT-1 Pick and Place Machine, Speed: 22500CPH, Patch range: H12S: 0402 ~ 7.5x7.5mm, Machine weight: 1,350kg, Dimensions: 2M II Base: 740 (L) x 1934 (W)

Fuji NXT-1 Pick and Place Machine

Products description



Modular design that supports high productivity and flexible production modes.
PCB Size: Min .: 48mmx48mm Max: 510mmx534mm (Double Track)

Patch speed: H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200
Patch accuracy: H12S / H08 / H04: 0.05mm (3sigma) cpk ≥ 1.00
Patch range: H12S: 0402 ~ 7.5x7.5mm high: MAX: 3.0mm
H08: 0402 ~ 12x12mm high: MAX: 6.5mm
H04: 1608 ~ 38x38mm high: MAX: 13mm
H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) High: MAX: 25.4mm
G04: 0402 ~ 15.0mmx15.0mm high: MAX 6.5mm
Mounted rack: MAX: 20 species / module (8mm tape conversion)
Use power: 3P / 200V / 10KVA
Air flow rate: 0.5 MPa (5 kgf / cm2), 10 NI / min.
LED Mounter
Dimensions: 2M II Base: 740 (L) x 1934 (W)
4M II Base: 1390 (L) x 1934 (W)
H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)
Machine weight: 1,350kg

Keywords:

SMT Pick and Place MachinePanasonic pick and place machineJUKI Pick and Place MachineHanwha Pick and Place MachineFUJI Pick and Place MachineSiemens Pick and Place MachineYamaha Pick and place machineSamsung Pick and Place MachineHitachi Pick and Place MachineI Pulse Pick and Place Machine.

FLASON provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@smtkait.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price !; Best shipping !; Best service !
