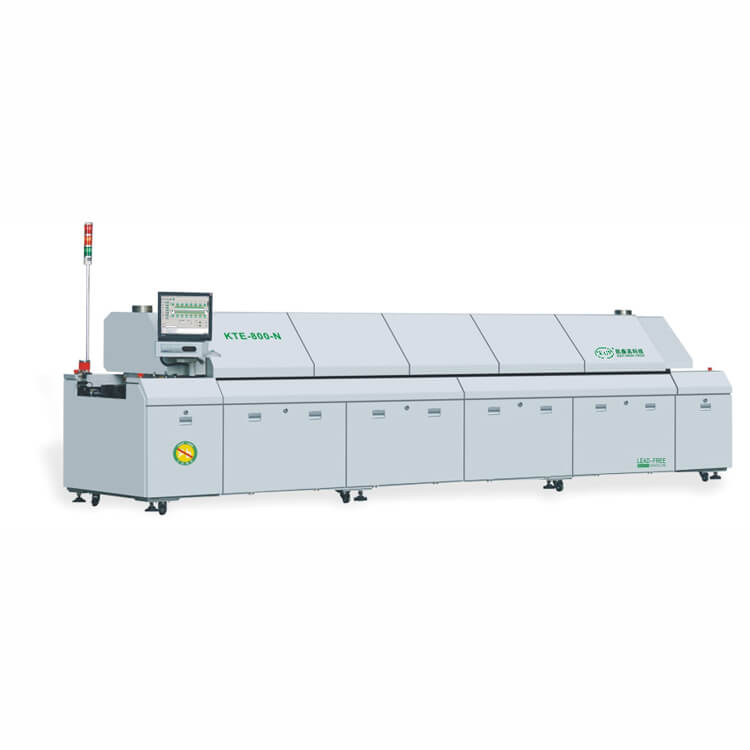

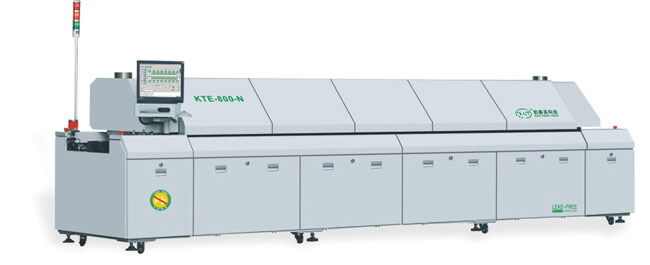

8 Zones Nitrogen SMT Reflow Oven KTE 800-N
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
7. The temperature inspection instrument constantly monitors the temperature of each temperature zone, ultra-high temperature protection, and automatically switch off the heating power
8. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.
The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.
Heating zones qty.
Top 8, bottom 8
Cooling zones qty.
Heating zone length

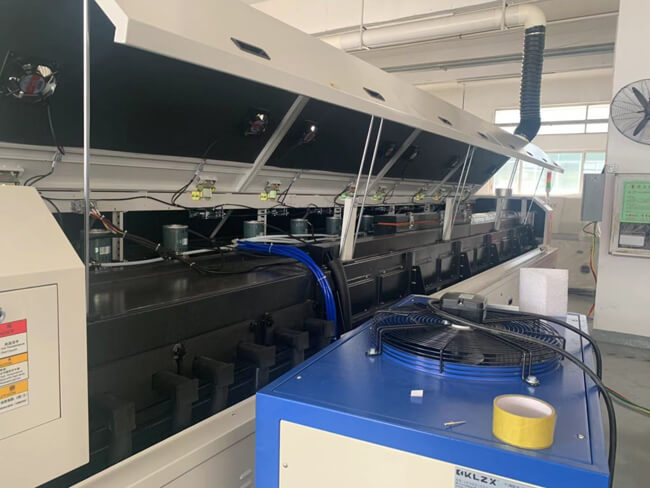

With "-N" standard configuration including nitrogen sealed structure and pipeline, nitrogen flow meter, water chiller cooling system
Full Nitrogen system: Oxygen analyzer added on the N Standard
Standard width machine (400mm Width): 300-1000ppmO2ppm, 10-20m3/ hr
N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr
3P 380V/220V 50/60HZ
Temp. control range
Temp. control accuracy
Temp. control method
PID +SSR drive
PCB temperature deviation
All profiles can be saved
Warm up time
High, low temp. alarm
2 sectional rails
Rail fixed method
PCB Max. width
Rail+ mesh+ chain
Left to right
Top 8,bottom 8（3110mm）can meet the need of the peak lead-free technique.
After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time
From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence
Warm up from two side, save the power and time
Profile transfer time
Heating zone temp. control accuracy
PCB temp. deviation
Empty to full load heat balance respond time
